engine mounts

chortle

Captain
Joined
Mar 7, 2012
Posts
917
Likes
506
Location
Annapolis, MD
Boat Make
Herreshoff Coquina, 1972 Jarvis Newman 36, PT11
I would like to put some soft mounts under my existing engine to reduce vibration and noise. The front is hard mounted, the back has the original soft mounts so they need to be replaced. Really no room to move the engine up and down. If need be there is a fair amount of room to move her fore and aft. No easy way that I can see to reuse or remake the existing mounting bracket on the front of the engine. I suppose new brackets could be made to fasten through the sides of the existing fiberglass angles and set the new mounts there. Maybe need to be set upside down so they hang? Move the alternator and raw water pump? Any other ideas?

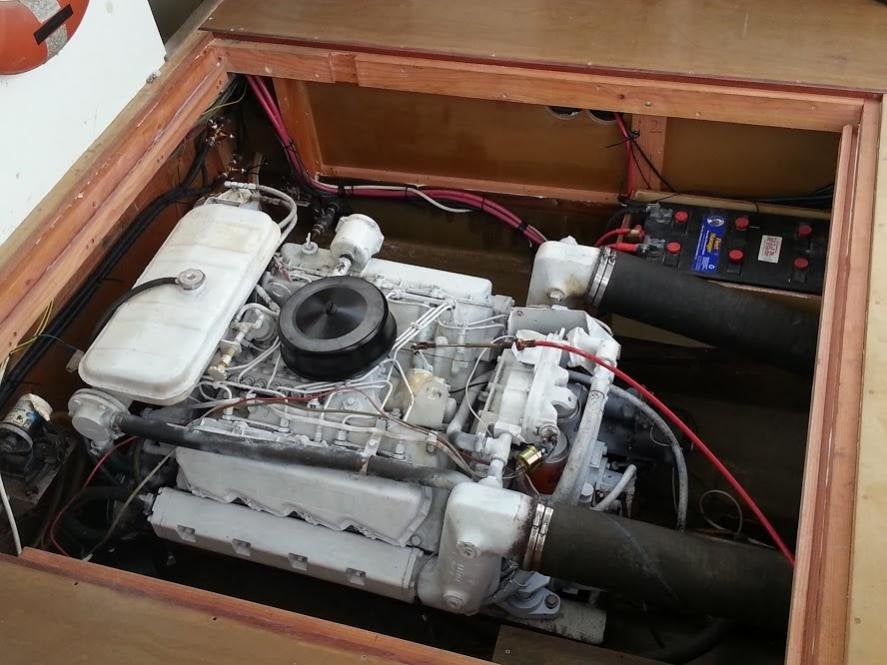

Cat 3160 after cleanup.jpg

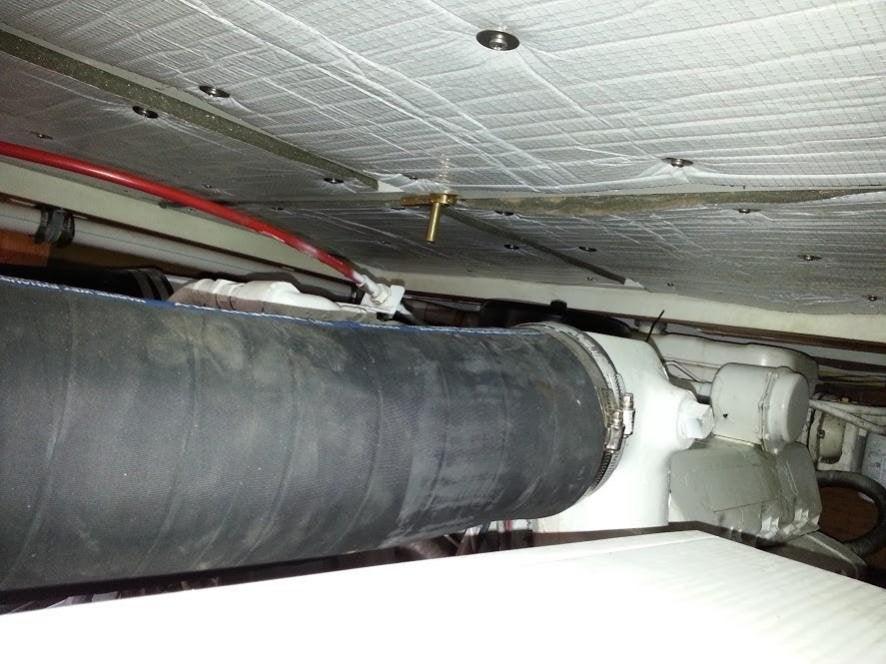

tight overhead clearance.jpg

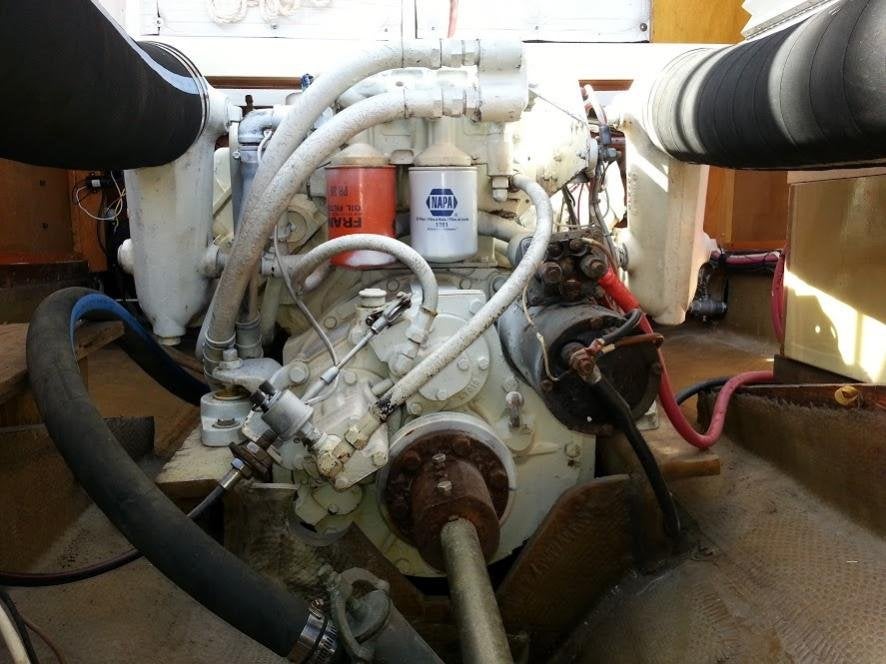

aft mounts.jpg

stbd engine mount looking aft 1.jpg

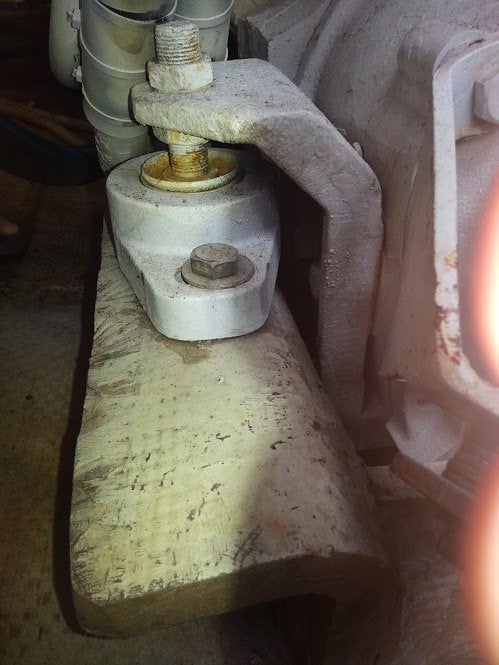

stbd engine mount fwd.jpg

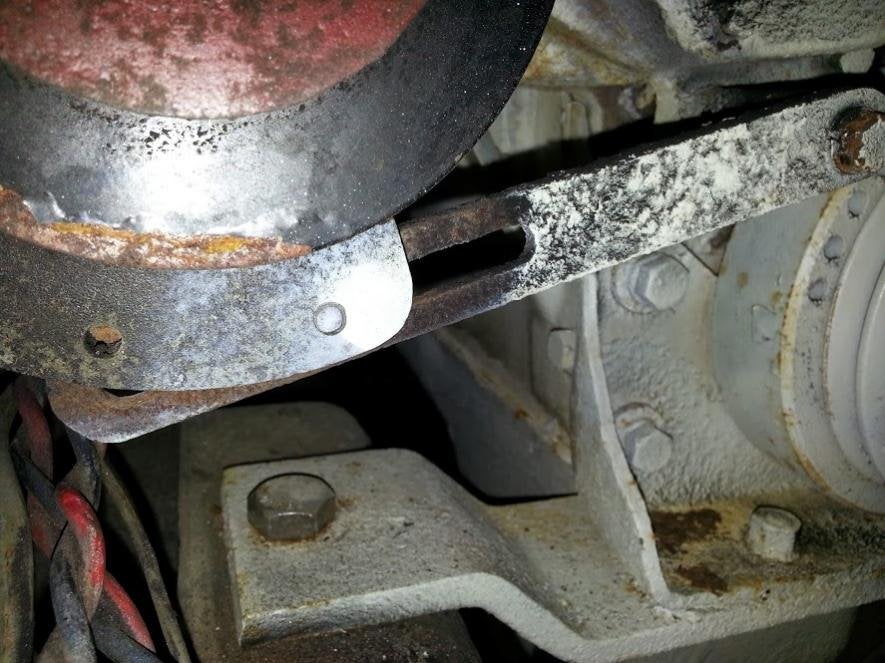

port fwd mount looking aft.jpg

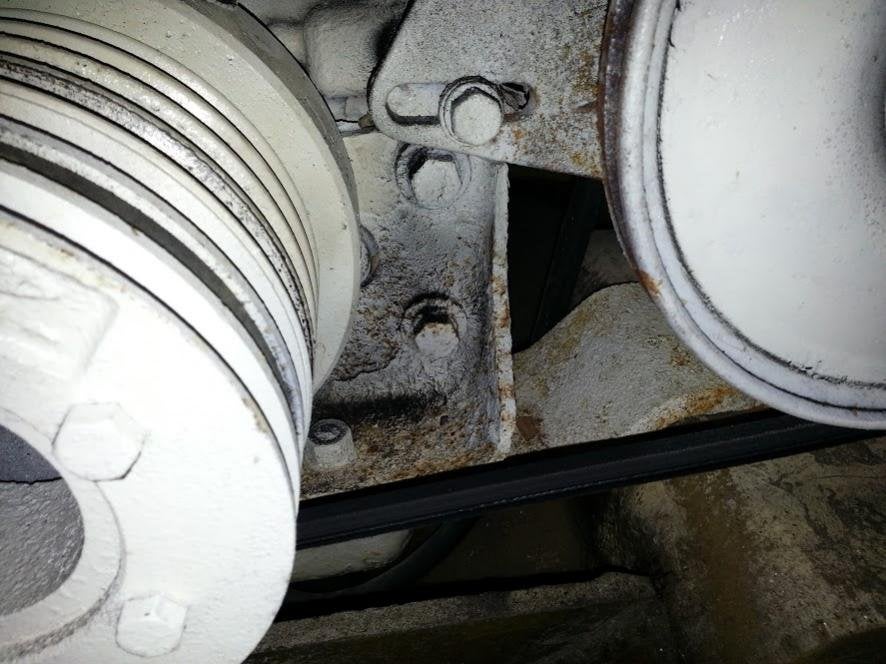

port fwd mount.jpg

port aft enigne mount.jpg

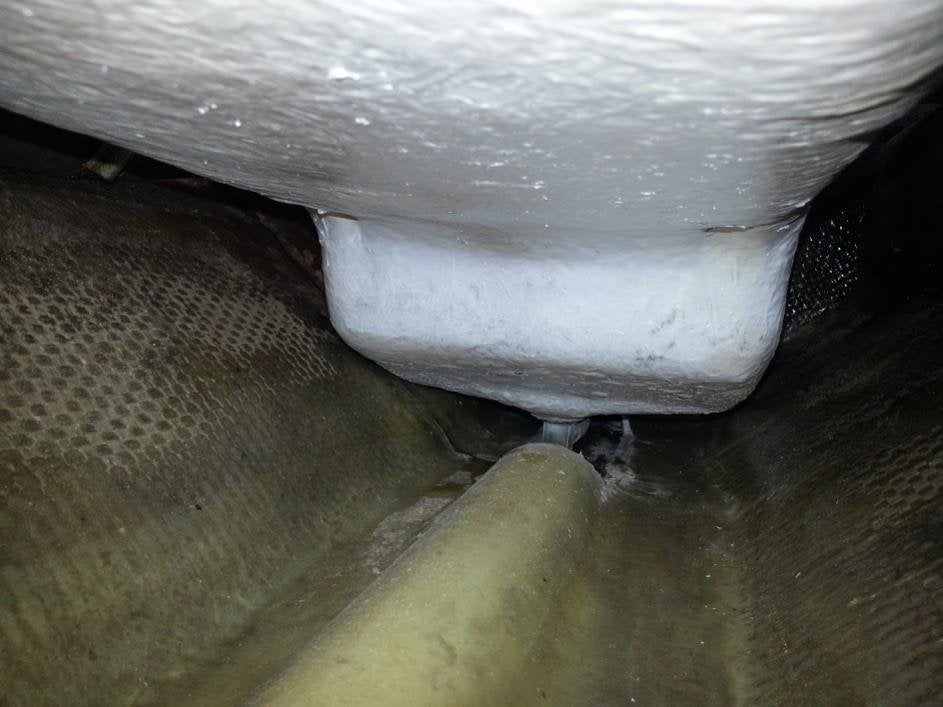

oil pan clearance.jpg
