Exhaust mixer

bestfish

Lieutenant Commander
Joined
Feb 27, 2012
Posts
237
Likes
63
Location
Cape Cod
Boat Make
36' Harris Cuttyhunk
Has anyone seen a wet exhaust design that doesn't have a mixer? What I mean is the water just gets 'dumped' into the exhaust stream. Will that work?


F/V First Team

Admiral
Joined
Jan 10, 2012
Posts
6,146
Likes
2,482
Location
Narnia
Website
www.otisenterprisesmarine.com
Boat Make
Northern Bay 36 - Modified
Probably not very well. Forcing the water to make a ring around the perimeter of the exhaust piping creates a jacket of cooling material, much like I'd imagine Preparation H must do similar in fashion, makes a hot hole more enjoyable and less irritable.

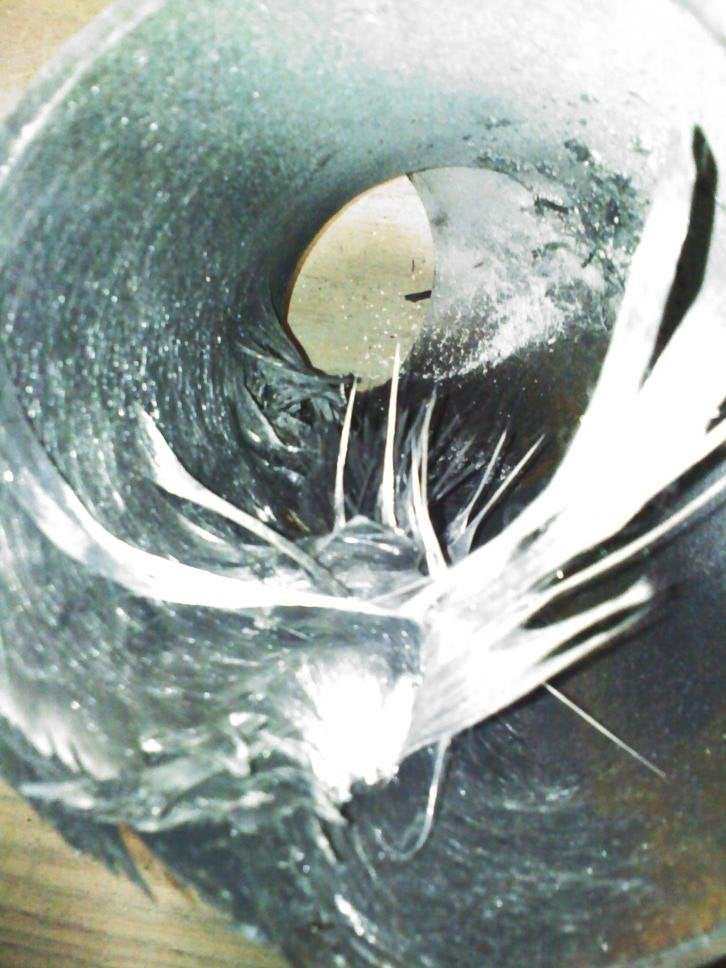

Having poor cooling and hot spots makes for bad mojo on a boat. We had someone make their own water mixer rather than use the one that was supplied with the engine once, they wanted a 6" mixer rather than the 5" supplied and simply use a hump hose to increase the diameter at the point of entry. The resulting design, rather than having the proper number of correct sized holes to force the introduction of water into becoming a jacket to protect the exhaust, it looked like someone took a triangular can opener - the kind you might find for those large cans of V-8 or pineapple juice at your local grocer - and jammed it through the metal to create outlets. This piss poor design ultimately made the marine exhaust hose fail after a paltry 43 hours of operation, the interior sleeve separated from the exterior and it swelled up like a blister on the inside. Not to mention the smell which was noticed at the time of the sea trial and when I pulled it apart we had a long conversation about warranties and how downright foolish the owner and builder were installing this particular setup. After being called down to fix the situation, since the owner didn't want to cure the issue by fixing the mixer itself, we introduced a device that disrupted the flow of water an made it swirl around the pipe. That seemed to do the trick - although not optimal in our eyes.

Cooling is crucial for any exhaust, and when you're messing around with water it is truly paramount.



bestfish

Lieutenant Commander
Joined
Feb 27, 2012
Posts
237
Likes
63
Location
Cape Cod
Boat Make
36' Harris Cuttyhunk
That's what I was thinking, it just didn't seem right. I bought some 316 stainless pipe that was being used for exhaust and it had a 1 1/4 hose barb and no mixer. Just looked like it wouldn't cool all the way around. I figured it would melt the top of the exhaust hose.


samhop

Lieutenant Commander
Joined
Sep 16, 2012
Posts
134
Likes
24
if your using metal exhaust yes, glass composite or exhaust hose = mix or burn


bestfish

Lieutenant Commander
Joined
Feb 27, 2012
Posts
237
Likes
63
Location
Cape Cod
Boat Make
36' Harris Cuttyhunk
That solves it then, next question who wants to build a set of mixers or a collector/ mixer. (Twin turbo). I have all the parts, just not that good at fabrication.


bestfish

Lieutenant Commander
Joined
Feb 27, 2012
Posts
237
Likes
63
Location
Cape Cod
Boat Make
36' Harris Cuttyhunk
Morrill. I've been meaning to stop by your shop and introduce myself.


bestfish

Lieutenant Commander
Joined
Feb 27, 2012
Posts
237
Likes
63
Location
Cape Cod
Boat Make
36' Harris Cuttyhunk
Will nautilus be able to determine the correct size and diameter of the holes, or do I need to do some more research before I call them?


F/V First Team

Admiral
Joined
Jan 10, 2012
Posts
6,146
Likes
2,482
Location
Narnia
Website
www.otisenterprisesmarine.com
Boat Make
Northern Bay 36 - Modified
It's really easy. Measure the OD of the nipple that would supply the water on your engine. Do a little math to figure out the square inches. Take that and divide it by what size holes you want to have (I used 3/16" holes on my latest creation which is 0.1875 for easier math) and that will give you the number of holes that you would need to equal the feed. To build pressure, just omit a few of them, usually on the bottom. I'll dig the spare parts out at the shop an toss up a photo of the plate so you can see what I'm talking about a little easier.


bestfish

Lieutenant Commander
Joined
Feb 27, 2012
Posts
237
Likes
63
Location
Cape Cod
Boat Make
36' Harris Cuttyhunk
Cool, thank you. I see exactly what your talking about. Now I need to do some planning to decide if I want to do 2 mixers or a riser/collector and one mixer. I'm leaning toward one, that way I don't have to T the water supply and reduce the volume to each. More is better right?


bestfish

Lieutenant Commander
Joined
Feb 27, 2012
Posts
237
Likes
63
Location
Cape Cod
Boat Make
36' Harris Cuttyhunk
Ok, so with a 2" hose = 3.14sq in / .1875 = 16.7 holes. So I figure on 14? Your picture shows over 20 holes. Am I missing something? The final dimension is 6" exhaust, so I'm thinking the inner pipe will be 5",that leaves a nice 1/2" space to get cooled. Now spread my holes evenly across that ring?
