Wiring a bilge alarm

Blacktide

Commander
Joined
Oct 13, 2011
Posts
498
Likes
181
Location
Long Island
Boat Make
Northern Bay 36
I don't know way by I can't seem to figure this out. I'm trying to replace a standard 3 way switch to one with a high water alarm. I was trying to rig this set up on my forward pump that never sees water. My thinking is if this pump cycles on there is a problem. The existing wires are a red + a black- and a green and white from the pump. The pump has a separate float switch . I spent hours today trying every combination I could. I was able to make the alarm go off but not turn the pump on at the float switch. Any thoughts????



Blacktide

Commander
Joined
Oct 13, 2011
Posts
498
Likes
181
Location
Long Island
Boat Make
Northern Bay 36
I did start by connecting the existing +red to the post on the back of the fuse


DM_PNW

Lieutenant
Joined
Aug 5, 2013
Posts
89
Likes
7

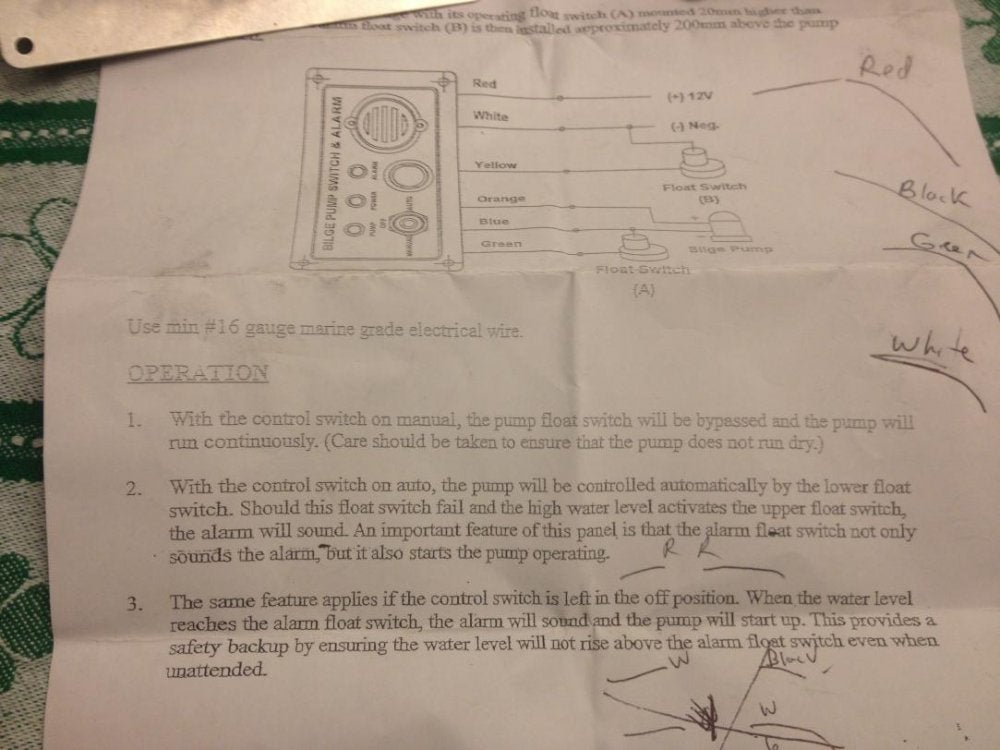

Interesting panel. Innovative use of 2 float switches. If the first float is part of the pump, that may be the cause. Each float gets connected to the panel independent of the pump, apart from the shared negative leads. I appoligize if I have said something you already knew.

Dave


googinhater

Rear Admiral
Joined
Dec 6, 2012
Posts
1,725
Likes
502
Location
Gloucester mass
Boat Make
38 yb. f/v wildlife
Are you trying to use just the one float or what its seems strate and easy i used something like that but its been years
